Metal work hand tools V

BASIC SCIENCE JSS1 third term

Theme drawing practice

WEEK 7

Metalwork hand tools V

Performance objectives

Students should be able to:

1. Describe metal work hand tools
2. Draw the sketch of the different hand tools

Content

Metalwork hand tools

Marking out tools

Surface plate

The surface plate is a precision piece of equipment with a flat surface of the high-grade finish, on which workpieces are placed for marking out. When testing for flatness, the surface is smeared with Prussian blue, so that when the workpiece is placed on it, the high spot is indicated for scraping.

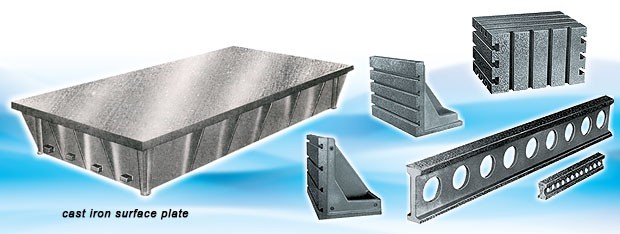

                                   Cast iron surface plate



Scriber

The scriber is metalworker's pencil. Scribers are made from high carbon steel or stainless steel, hardened and…
