Drawing Instruments and Material II

Basic Technology J.S.S 1 Second Term


Drawing Instruments and Material II

Performance Objectives

Students should be able to:

  1. Demonstrate correct techniques for handling drawing instrument and materials


Drawing Board

A drawing board with its working surface upward. The top surface of the board is perfectly smooth and level. A drawing board is rectangular in shape and is made of well-seasoned softwood such as oak or pine. A straight ebony edge is fitted on the left side on the board against which the head of the T- square moves.

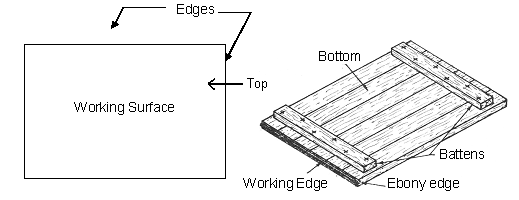

                                           Drawing Board (Top)             Drawing Board (Bottom)



Drawing Sheet

 The drawing is frequently made in pencil on the drawing sheet. The best drawing sheet has the following qualities:

  1. Light.... View More
